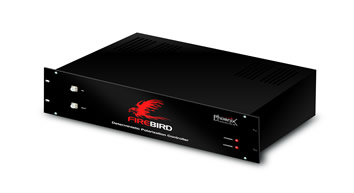

Deterministic Polarization Controller



Part of the Phoenix Photonics FirebirdTM range of instruments, the deterministic polarization controller allows tracking of any user specified state of polarization in the measurement reference plane. The on-board microprocessor is programmed through via a simple PC interface to provide a range of pre-selected or user defined operations.

- View Datasheet

FEATURES
  • Polarization state tracking once selected
  • Scanning half – and quarter waveplate
  • Selection of 6 key states
  • User programmable operation
  • Transfer of polarization reference plane

APPLICATIONS
  • Polarization control
  • PDL measurement
  • Component testing
  • Polarization state stabilization
  • Optical fiber polarimetry



SPECIFICATION:

Units

Each fiber channel

Wavelength range

nm

1530 – 1570; 1570 - 1620

Insertion Loss1

dB

<2

Return Loss1

dB

>55

Operating Temperature Range

0C

0 to 50

Storage Temperature

0C

-40 to +85

Effective extinction ratio of state

dB

>25 (all states, all wavelengths)

Parameter setting

State of Polarization; pre-selected states, scanning waveplates, user defined setting

Communication interface

USB

Optional additional interface

GPIB, Ethernet, RS232

PC control

Software for full control

Power

External mains 110V to 240V
